PCB cleaning with ECO 1000 and ECO 2000

ECO 1000 and ECO 2000 PCB cleaning systems|default:PCB Cleaning systems|default:.NAME

Clean, rinse and dry assembled circuit boards

The ECO 1000 and ECO 2000 systems clean electronic assemblies and printed circuit boards using an aqueous spray process. They are designed to remove flux, resin and handling residues, for example after assembly or repair and before further processing such as protective coating.

The process combines cleaning with a suitable agent, several rinses with deionised water and hot-air drying. The cleaning programme controls the number, duration and temperature of the individual steps.

Select the system, cleaning agents and accessories

ECO 1000 and ECO 2000: compare the specifications, configuration and operating instructions on each product page.
Select matching agents such as MIX3 and Component A+ for the residues and cleaning process.
Water deionisation, filters and the ECO 2000 PCB cleaning frame support the chosen application.

Each product page provides the relevant documentation and available downloads. Contact us for help selecting a system and cleaning process.

7000.0003 ECO 1000 PCB cleaning system with hot-air drying

ECO 1000: clean, rinse and dry PCBs. Compact benchtop system with individually programmable cleaning cycles.

Aqueous spray cleaning followed by hot-air drying.
Supplied with 1 cleaning basket and 1 PCB frame, one “Bogen” holder, one “Stachel” holder and a downstream filter system.

Downloads:
ECO 1000 operating instructions (PDF)
PCB cleaning information (PDF)

Application video on YouTube · EU Data Act

6.558,00 EUR

plus 19% tax

7000.0004 ECO 2000 PCB cleaning system with hot-air drying

ECO 2000: clean, rinse and dry PCBs. With automatic dosing of liquid cleaning components.

Aqueous spray cleaning followed by hot-air drying.
Supplied with 2 PCB frames, one “Bogen” holder, one “Stachel” holder and a downstream filter system.

Downloads:
ECO 2000 operating instructions (PDF)
PCB cleaning information (PDF)

EU Data Act

10.668,00 EUR

plus 19% tax

7000.0110 NE water desalination unit for ECO 1000 / 2000

consisting of:
IMO NE-20 desalting cartridge, pressure-proof unit to 7 bar, conductivity meter with alarm contact, complete with connecting elements and solenoid valve.

1.380,00 EUR

plus 19% tax

7000.2006 Cleaning agent MIX3 for ECO 1000 / 2000, environmentally friendly.

6 kg - Refill
Safety Data Sheet as PDF

102,20 EUR

plus 19% tax

7000.2023 Component A+

Liquid cleaner for automatic dosing.
5 liters, recommended
cleaning temperature: 60 ° C.

Safety Data Sheet as PDF

136,00 EUR

plus 19% tax

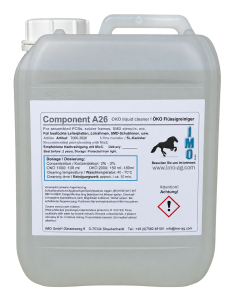

7000.2026 Component A26

Liquid cleaner for automatic dosing.
5 liters, recommended
cleaning temperature: 60 ° C.

Safety Data Sheet as PDF

148,00 EUR

plus 19% tax

7000.2030.N Activator AT-25N for ECO1000 / 2000 activates and defoams.

5 liters
Safety Data Sheet as PDF

82,00 EUR

plus 19% tax

7000C0030 Desalination cartridge Exchange cartridge NE20 for ECO 1000 / 2000

(reserve) for water desalination unit.
Can be regenerated many times without quality loss!

820,00 EUR

plus 19% tax

7000.0500 INFO-SYS radio module for OEKO 1000 / 2000

INFO-SYS for OEKO1000 / OEKO2000
INFO-SYS reports when the system is waiting for detergent dosing by the user, e.g. MIX 3 dosing, in the event of all types of faults such as spray arm blockage due to foaming, waste water filter blocked and also at the end of the cleaning process - PCBs can be cleaned and removed dried.
Technical data PDF
