4-electrode conductivity measurement. High measuring accuracy

4-electrode conductivity measuring system|default:4-electrode e.c. measurement with fitting TA40|default:.NAME

4 electrodes conductivity measurement with high measurement accuracy

even if the contacts are dirty.
The 4 electrode conductivity measuring cells LM4E are available with cell constants of 0.5, 1.0, 2.0 and 3.0. By putting on different caps it is very easy to choose between cell constant 1, 2 and 3.

The LFTR 40 transmitter is plugged directly onto the 4-electrode conductivity sensor , so that there is no need for any wiring work between the sensor and the transmitter and no cable resistances can be included in the measurement result. From the transmitter it then goes directly to the PLC, whereby the cable length is irrelevant.
A measuring range from 0...120 µS/cm to 0...1200 mS/cm is covered. In between, the finest gradations are possible by changing the measuring cell and by moving jumpers.
The media temperature is measured by NTC and is used for temperature compensation of the conductivity as TK-nat.
The media contacting materials are electrographite , titanium and EPDM. The housing of the measuring cells and the immersion fitting are made of PP.
Thus, a very inexpensive measuring unit is available as immersion fitting TA 40 or as fitting for installation in fittings as 2 ¼" and 2 ¾".

0022.4300 TA40 head with cable gland PG9

19,80 EUR

plus 19% tax

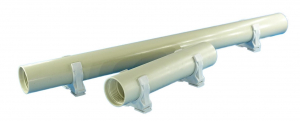

0022.4020 TA40 pipe 20 cm for immersion fitting

38,00 EUR

plus 19% tax

0022.4050 TA40 pipe 50 cm for immersion fitting

40,00 EUR

plus 19% tax

0022.4100 TA40 pipe 100 cm for immersion fitting

43,00 EUR

plus 19% tax

0022B0480 Conductivity transmitter for 4-el. measuring cells with NTC

18 Measuring ranges with 4-electrode measuring cells with NTC with CC0.5, CC1, CC2, CC3.
0...100µS /...1200mS/cm 10 kohms / 1ohm
Output (galvanically isolated) : 0(4)...20mADC/ 0(2)...10VDC
Supply: 24VDC

Technical Data Download PDF

142,00 EUR

plus 19% tax

0022.4006NTC Conductivity measuring cell 4-electrodes CC 0.5 with NTC

for connection to 0022B0480 conductivity transmitter.
with NTC for automatic temperature compensation
Cell constant: CC=0.5
Materials: PP, Titanium, El. graphite, FPM / EPDM
Recommended measuring range: -100mS / 10 ohms

231,00 EUR

plus 19% tax

0022.4006Pt100 Conductivity measuring cell 4-electrodes CC 0.5 with Pt100

for connection to 1300.0401 SMART96 e.c. and
1300.2201 SMARTWG e.c. devices.
with Pt100 for automatic temperature compensation
Cell constant: CC=0.5
Materials: PP, Titanium, El. graphite, FPM / EPDM
Recommended measuring range: -100mS / 10 ohms

236,00 EUR

plus 19% tax

0022.4000NTC Conductivity measuring cell 4-electrodes CC 1...3 with NTC

for connection to 0022B0480 conductivity transmitter
with NTC for automatic temperature compensation
Cell constant: CC=1...3
Materials: PP, Titanium, El. graphite, FPM / EPDM
Recommended measuring range: -1200mS / 1 ohm
Only complete with measuring cell sleeve or measuring cell cap.

228,00 EUR

plus 19% tax

0022.4000Pt100 Conductivity measuring cell 4-electrodes CC 1...3 with Pt100

for connection to 1300.0401 SMART96 e.c. and
1300.2201 SMARTWG e.c. devices
with Pt100 for automatic temperature compensation
Cell constant: CC=1...3
Materials: PP, Titanium, El. graphite, FPM / EPDM
Recommended measuring range: -1200mS / 1 ohm
Only complete with measuring cell sleeve or measuring cell cap.

233,00 EUR

plus 19% tax

0022.4001H LF measuring cell sleeve 4E CC1

for LF measuring cell 4E CC1-3

22,00 EUR

plus 19% tax

0022.4002K LF measuring cell cap 4E CC2

for LF measuring cell 4E CC1-3

29,50 EUR

plus 19% tax

0022.4003K LF measuring cell cap 4E CC3

for LF measuring cell 4E CC1-3

29,50 EUR

plus 19% tax

0022.4450 TA40 Insertion head with welding socket d=50

for screw connection 2 1/4 "
Outer diameter: 62.6mm

28,50 EUR

plus 19% tax

0022.4400 TA40 collar bushing d=50

for screw connection 2 1/4 "
Outer diameter: 62.6mm

32,80 EUR

plus 19% tax

0022.0476 TA40 connector is used to connect 2 tubes.

is used to connect 2 tubes TA40.

26,40 EUR

plus 19% tax

0022.4490 PVC-U fitting, 2 1/4" with 2-fold gluing sleeve

8,80 EUR

plus 19% tax

0022.4500 TA40 adapter ring d=63

for screw connection 2 3/4 "
Outer diameter: 78.4mm

26,50 EUR

plus 19% tax

0022.4510 PVC-U fitting, 2 3/4" with 2-fold gluing sleeve

12,00 EUR

plus 19% tax

0022.0483 Conductivity transmitter for 4-el. measuring cells On site assembly

18 Measuring ranges with 4-electrode measuring cells with NTC with CC0.5, CC1, CC2, CC3.
0...100µS /...800mS/cm 10 kohms / 1ohm
Output (galvanically isolated) : 0(4)...20mADC/ 0(2)...10VDC
Supply: 24VDC

Technical Data Download PDF

195,00 EUR

plus 19% tax
