0022.4000Pt100 Conductivity measuring cell 4-electrodes CC 1...3 with Pt100

Product No.:: 0022.4000Pt100
Stock:: pieces
Weight:: 0.05 kg per piece

233,00 EUR

plus 19% tax

Description

Description

LM4E-1-3-Pt100

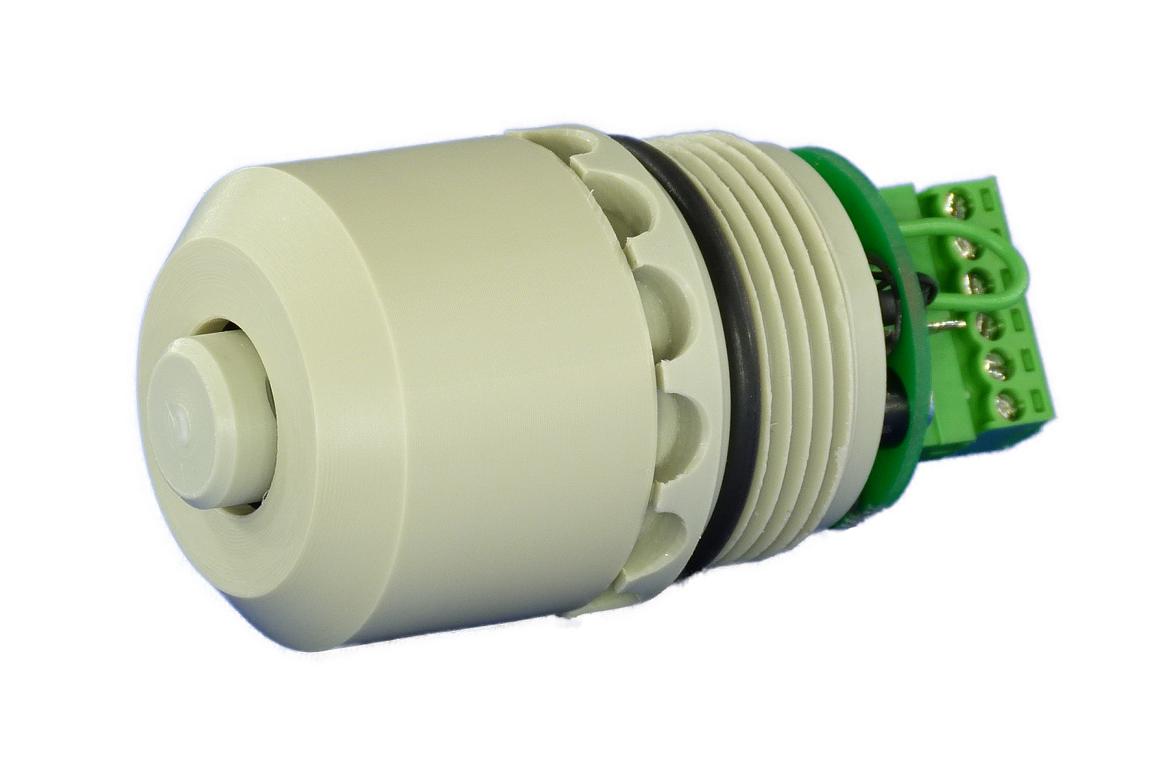

4 electrodes conductivity measuring cell with Pt100
The advantage of the 4-electrode conductivity measuring cell is that the measured conductivity has a very high accuracy even with dirty contacts. This is due to the fact that working electrodes and sense electrodes are integrated separately in the measuring cell. The measuring current flows between the working electrodes depending on the conductance of the measuring liquid. The voltage induced in the liquid is then applied to the sense electrodes.
If the contacts are dirty, the voltage at the sense electrodes would be too low. In order to keep the sensor voltage constant, the measuring current at the working electrodes is increased by the evaluation electronics. The sense voltage is directly related to the electrical conductivity of the solution.

Technical data: (subject to change without notice)

Cell constant 1...3 recommended measuring range	0...1200mS/cm 1 ohm...∞
Accuracy cell constant	+/- 3%...+/-5%
Temperature compensation	Pt100
Electrode material	Graphite / Titanium
Cell housing Polypropylene	max. 70-80°C
Seals O-ring	FPM / EPDM
Screw-in thread	M36x2
Pressure resistance	10 bar ...70°C
Connector	6 pole
