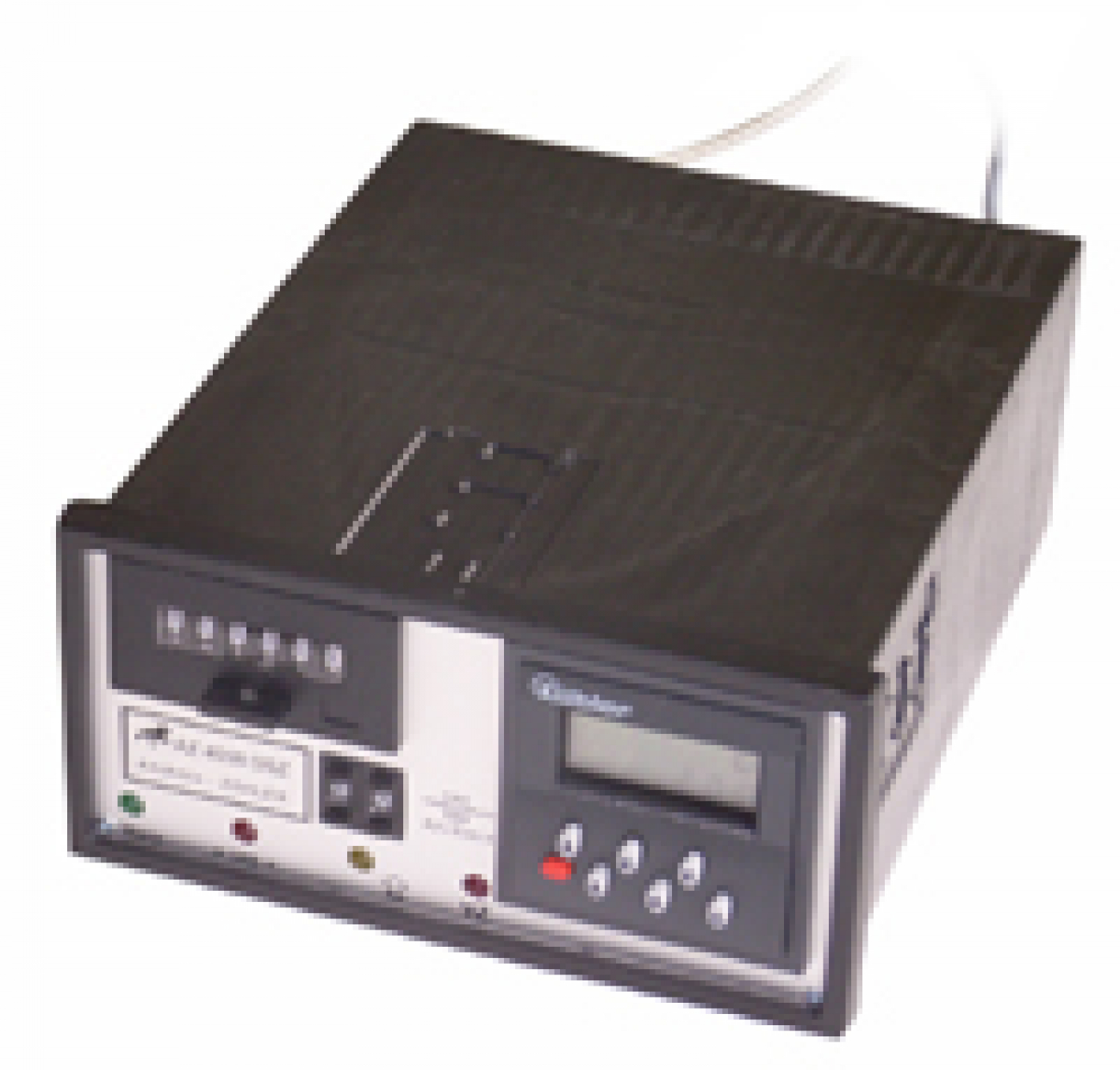

AZ 4000 DSZ ampere hour counter
Ah-counter with 6-digit electromechanical Summing counter
and 6-digit electronic preset counter.
Dosing electronic DSZ for time control of dosing valves or dosing pumps.
In closed case for installation or local operation.
Connecter to standard shunt 60mV or equivalent signal outputs from electroplating rectifiers.
Dosing output 1... 99sec. / 100Ah for external control of dosing pumps
The electromechanical totalizer may be reset with a key.

For input voltages lower than 1 mV and higher then 150mV,
LED indicates the range control () that no accurate measurement is obtained.
(Nominal voltage of a standard shunt = 60mV)
For currents up to 12A, the shunt can be built in the device.

Specifications:  (changes reserved)
1. mechanical
    Totalizer

2. LED Power
3. LED Range
4. LED pump
5. Dosing button

6. LCD
    Preset counter
Totalizer          electromechanical
6 digits
(optional electronic LCD)
Preset counter   LCD 6 digit, electrically resettable
Accuracy    0,1%
Input voltage

for the total current through isolating modules
(Other voltages on request) 		60mV (1...150mV)


10V

Dosing electronics DSZ
adjustable from

optional 		 1...99sec./100Ah


1...99sec. / 10Ah
Output relay
potential free		 230V / 10A

Output preset counter
to switch of  the rectifier
relais contact
floating
230V AC / 0,5A
30V  DC 2A
Suitable for connection of any dosing pumps
for automatically dispensing of bath additives.

Adjustable measuring ranges
Ah-counter ......300 A    (2 decimal points)
..:.3000 A    (1 decimal point)
..10000 A    (0 decimal point)
Amin-counter .......... 6 A    (2 decimal points)
.........60 A    (1 decimal point)
.......400 A    (0 decimal point)
Asec. / Metal weight
             counter		 on request

Adjustment to the shunt data can be changed by the customer too.

Operating voltage   230 V 50/60 Hz    -20% / +10%
Power consumption 4 VA
Ambient temperature 0...50°C
Case Panel mounting case to
DIN43700
Material flame retardant Noryl
Front size W x H 144 x 72 mm
Front panel cut W x H 137 x 66 mm
Depth 180 mm
Connectors Plug-in terminal
Weight approx. 1100g
Climate resistance rel. Humidity =< 75%
without condensation
Electrical safety   to EN 61 010
Air and creepage distances for
Overvoltage category II
Pollution degree 2
Class 1
Protection class

with transparent door		 to EN 60 529
front side IP44
                  IP54
Electromagnetic tolerability to NAMUR recommendation
NE21, EN 50 081 Part 1
EN 50 082 part 2
