Measuring Control unit SMART WG-2
»
1300.2301.DC SMART WG2 pH + ORP 9...36 VDC
1300.2301.DC SMART WG2 pH + ORP 9...36 VDC
1300.2301.DC SMART WG2 pH + ORP 9...36 VDC
Product No.:
1300.2301.DC
Stock:
pieces
Weight:
0.5
kg per piece
424,00 EUR
plus 19% tax
Add to cart
Add to wish list
Ask about product
Description
Description

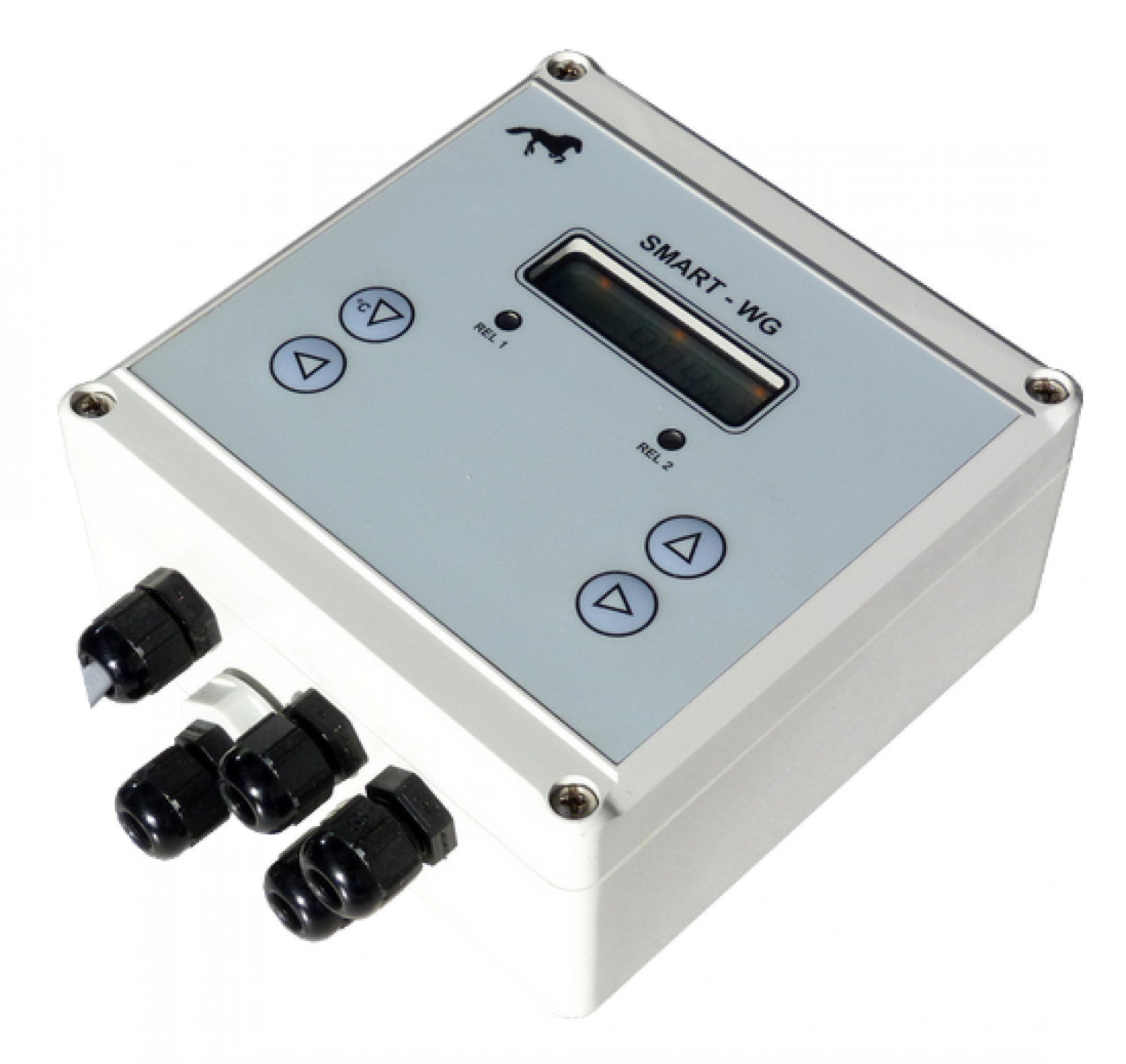

SMART WG-2 pH + ORP + °C
Measuring and control device for
pH-Redox-°C measurement.
In wall mounting housing 120 x 122 mm
Specifications:
(changes reserved)
Illuminated display
Measuring input pH / ORP:
Range
0,00...14,00 pH / ±1200 mV (ORP)
Accuracy
± 0,02 pH / 2 mV
Input resistance
>10
12
Ohm
Electrodes and cable monitoring for short circuit, break
and glass breakage.
Measurement inputs to the device electrically isolated.
Automatic temperature compensation with Pt100
Measuring input temperature:
Range
-20,0...110,0°C
Accuracy
0,5°C
Sensor
Pt 100 in 2-or 3 wire technology
Cable break and short circuit monitoring
Outputs:
2 potential-free relay contacts
(the measuring inputs are assigned as desired)
250 V AC / 8A
with resistive load
Freely configurable as:
Limit
limit switch
Alarm
alarm control
PRI
proportional pulse lengths
PRF
proportional pulse frequency
Limit switch:
Available switching characteristics
NC / NO
Permanent or pulse contact
Switching delay
0...9999 sec.
Switching hysteresis
0....200 digit
Alarm control:
Optical Signal
Acoustic signal
Delay time
manually reset
0,1...30 min.
P
roportional pulse lengths:
Integral component switchable
cycle time
4...120 sec.
P
roportional pulse frequency:
Integral component switchable
Pulse frequency
0...3 Hz
Pulse length
170 ms fixed
2 Analog outputs:
0(4)...20mA
Standard signal
0...5V/10V by parallel connection
of a 250/500 Ohm resistor
0/4 ... 20 mA
to the display value
free assignment
Maximum burden
500 Ohm
General:
Operating voltage
9...36 VDC
Power consumption
< 5 VA
Ambient temperature
0...50°C
Case
In wall mounting housing
120 x 122 mm
Material
ABS
Connectors
Plug-in terminal
Weight
approx. 500g
Climate resistance
rel. Humidity =< 75%
without condensation
Electrical safety
to EN 61 010
Air and creepage distances for
Overvoltage category II
Pollution degree 2
Class
1
Protection class
to EN 60 529
front side IP65
Electromagnetic tolerability
to NAMUR recommendation
NE21, EN 50 081 Part 1
EN 50 082 part 2
