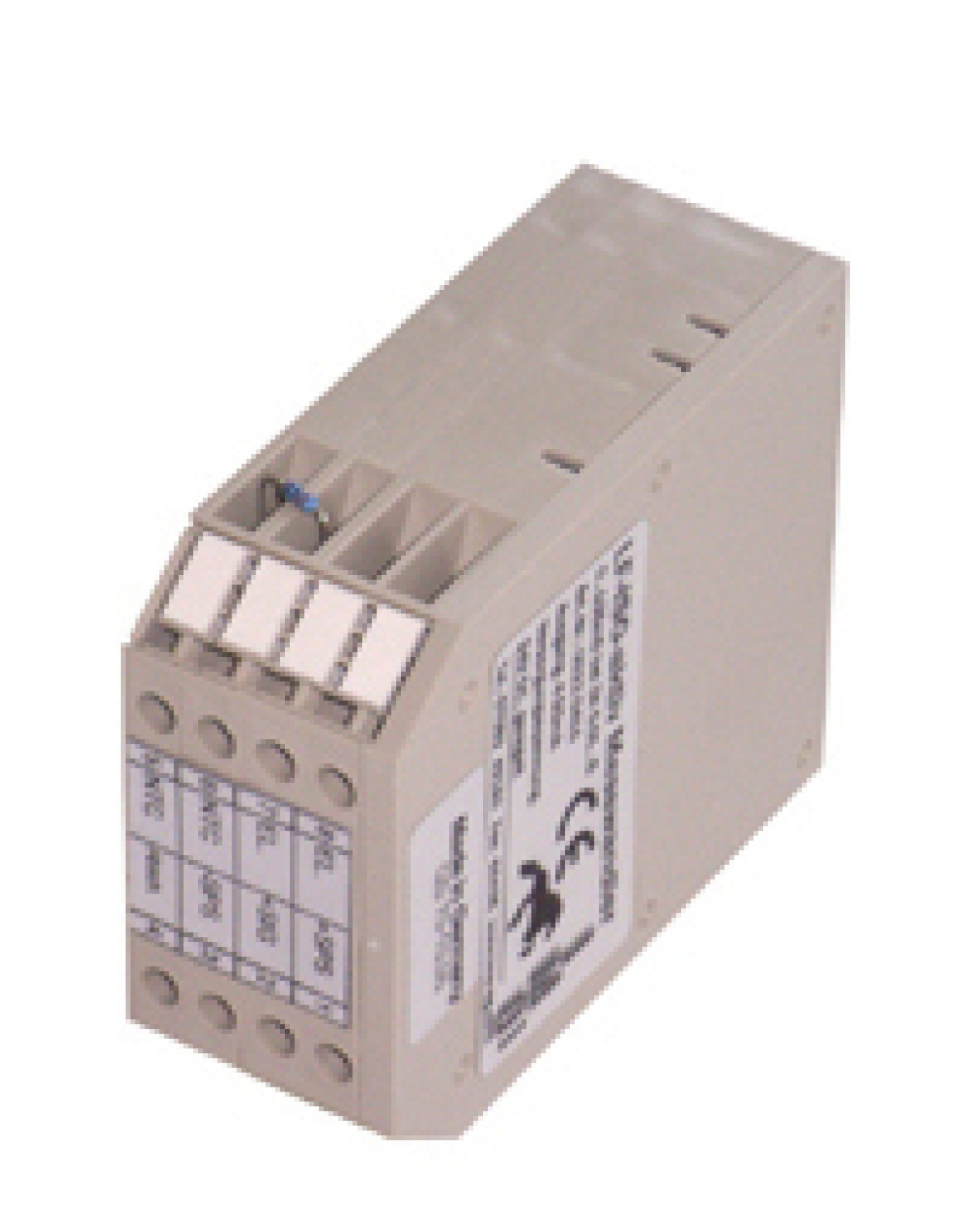

0022.0410.8 Transducer for conductivity - 12VDC - 0...10V output

Product No.:: 0022.0410.8
Stock:: pieces
Weight:: 0.08 kg per piece

198,00 EUR

plus 19% tax

Description

Description

Transducer for e.conductivity S/cm
in DIN rail case with automatic temperature compensation and electrical isolation.
The instrument converts the conductivity of the measured solution into a low-
impedance output signal of 0(4)..20mA or 0..5/10V.
CC means cell constant

Specifications: (changes reserved)

Measuring input conductivity Specifications are always in /cm	2µS...100mS with CC001...CC5 Always refers to 20mA or 10V.
Output	0(4)...20mA / 0...5 / 10V According to the type plate
Accuracy / Linearity Adjustment with 5m cable 0,34mm	+/- 1%, -2% at 20mS, -5% at 200mS
Temperature sensor input for temperature compensation	NTC 2K-Ohm all e.c.-measuring cells LMN
Temperature compensation	approx. 2,2%/°C natural water
Reference temperature	25°C
Operating voltage	12VDC / 24VDC +/- 10% regulated According to the type plate
Current consumption	max. 70mA
Ambient temperature	0...60°C
Protection	IP20
Dimensions H x W x D	75 x 60 x 30mm
Weight	70 gram

Connection Diagram

The specified measuring ranges always refer to 20mA or 10V.
