Transducer for conductivity - 24VDC - 4...20mA output
Transducer for conductivity - 24VDC - 4...20mA output
Transducer for conductivity - 24VDC - 4...20mA output

Transducer for conductivity - 24VDC - 4...20mA output

Product No.:
0022.0410.1
ca. 3-4 days ca. 3-4 days (abroad may vary)
Weight:
0,08 kg per piece
198,00 EUR

plus 19% tax

Add to wish list
Ask about product
Description
Transducer for e.conductivity mS/cm
With automatic temperature compensation. The instrument converts the conductivity of the measured solution into a low-impedance output signal of 0(4)..20mA or 0..5/10V.
CC means cell constant

Specifications: (changes reserved)
Measuring input conductivity
Specifications are always in /cm		 2µS...20mS with CC001...CC1
Always refers to 20mA or 10V
Output 0(4)...20mA  / 0...5 / 10V
According to the type plate
Accuracy / Linearity
Adjustment with 5m cable 0,34mm		 +/- 1%, -2% at 20mS, -5% at 200mS
Temperature sensor input
for temperature compensation		 NTC 2K-Ohm
all e.c.-measuring cells LMN
Temperature compensation approx. 2,2%/°C natural water
Reference temperature 25°C
Operating voltage 12VDC / 24VDC +/- 10% regulated
According to the type plate
Current consumption max. 70mA
Ambient temperature 0...60°C
Protection IP20
Dimensions H x W x D  75 x 60 x 30mm
Weight 70 gram

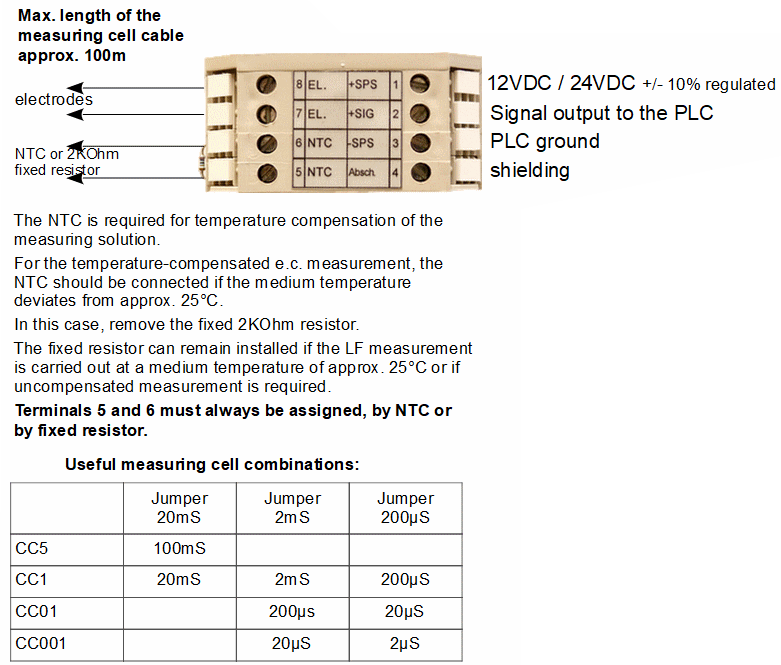

Connection Diagram
Always refers to 20mA or 10V
