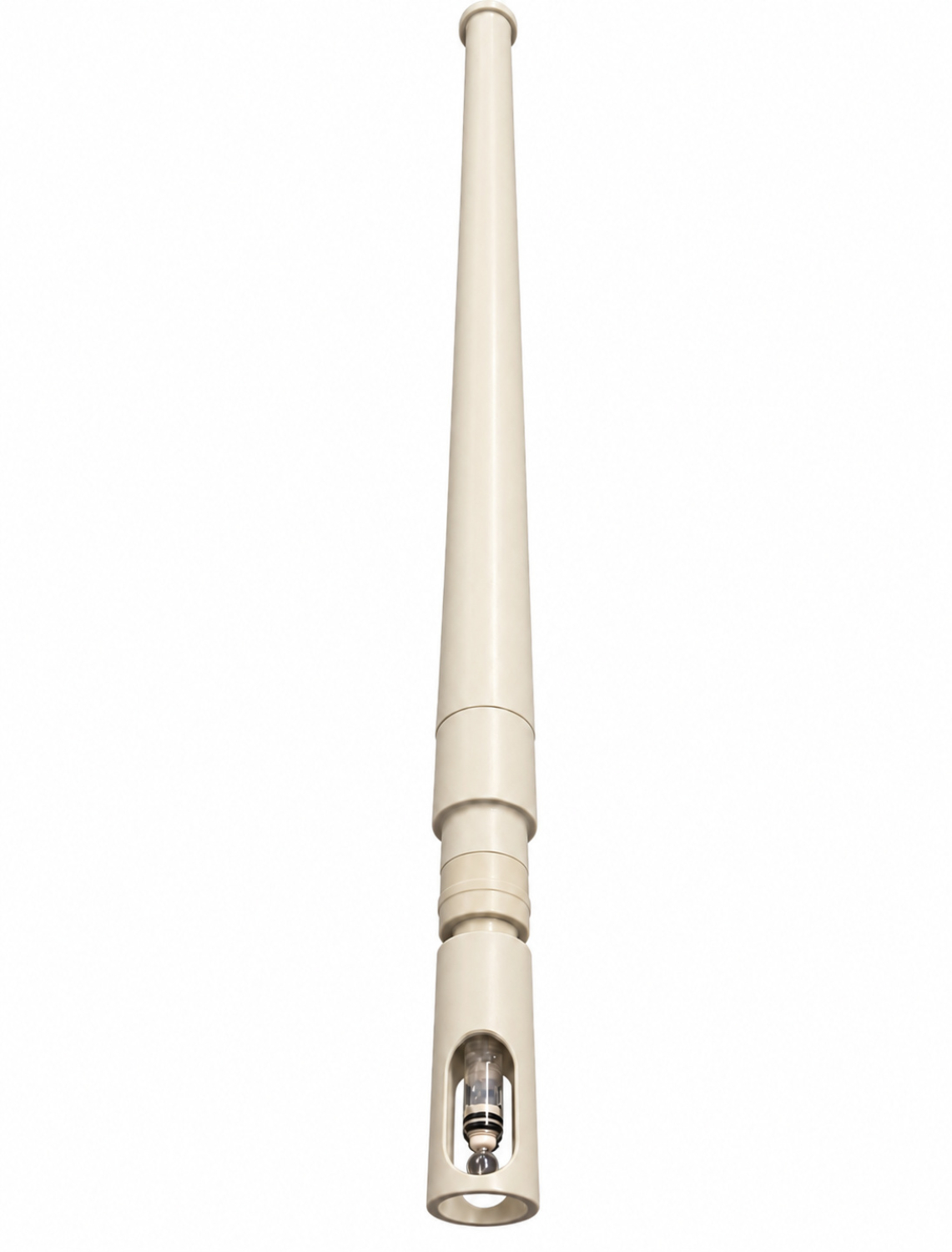

Digital pH transmitter with RS-485 interface. It supports Modbus RTU as well as plug-and-play communication with compatible JUMO digiLine systems.
Integrated functions include zero-point and two-point pH calibration, one-point temperature calibration, a calibration timer, and configurable electrode monitoring that can be switched off.
Technical specifications
| Measuring range |
0...14 pH |
| Temperature sensor |
NTC 2 kΩ, Pt1000 or no sensor / external temperature value |
| Fallback temperature |
25 °C when no sensor is connected; externally overwritable |
| Interface |
RS-485, 2-wire, Modbus RTU; compatible with JUMO digiLine |
| Baud rates |
9600, 19200, 38400, 57600 or 115200 baud, 8N1 |
| Device address |
1...247; factory setting 10 |
| pH filter time constant |
1.0...10.0 s; factory setting 3.0 s |
| Electrode check |
switchable; test interval 10...600 s |
| Calibration |
pH zero point or pH two-point; one-point temperature calibration |
| Operating voltage |
5 V DC ±10% |
| Current consumption |
50 mA |
| Ambient temperature |
-20...50 °C |
Subject to technical changes.
Power supply and connection
4-pin M12 connector, A-coded: pin 1 brown = +5 V DC; pin 2 white = RS-485 D1/B+; pin 3 blue = GND / Modbus common; pin 4 black = RS-485 D0/A−.
Shielded cable should be used for cable lengths of 6 m or longer. Connect the shield to protective earth at the control cabinet.
Downloads
Current software
pH firmware basis 0.6.99; IMO Modbus Sensor Monitor PC 1.15. The package also includes LF-TR-MOD Monitor PC 1.16 for conductivity devices.
